Axim Concealed Overhead Transom Closer TC 8800 Series- ACT880290
Axim Concealed Overhead Transom Closer TC-8800 Series

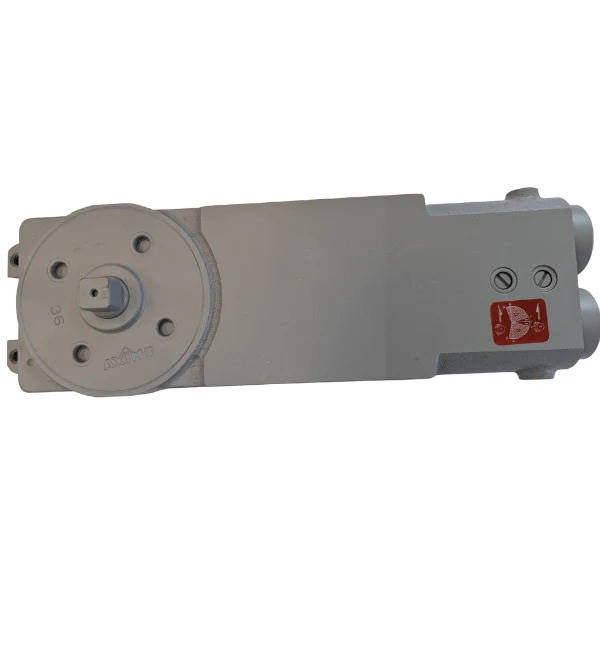

The Axim TC-8800 (ATC880290) universal concealed closer is a hidden commercial closing solution held integrally in the door leaf and transom. This means that the door requires no external hardware to create uncluttered and secure solution. Choose from a variety of door control options to achieve the desired level of functionality such as no-hold opening for low-traffic areas or 90° hold-open for high traffic installations. The TC range is fully adjustable vertically and laterally so it’s easy to ensure smooth operation and perfect closing.

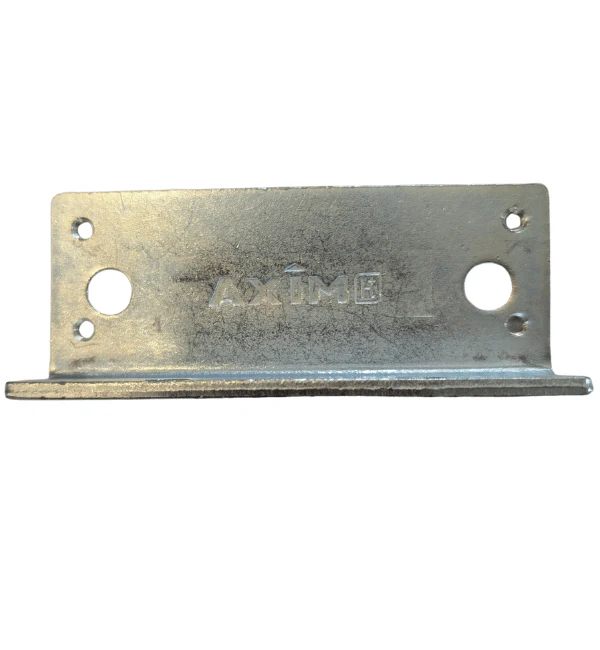

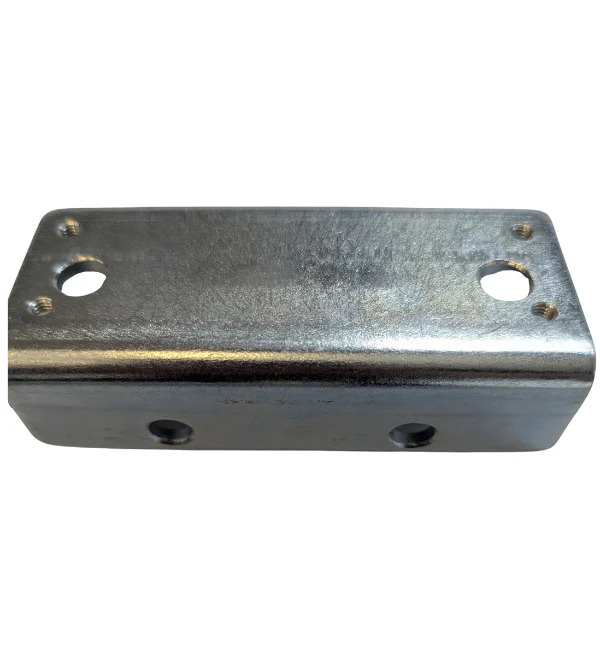

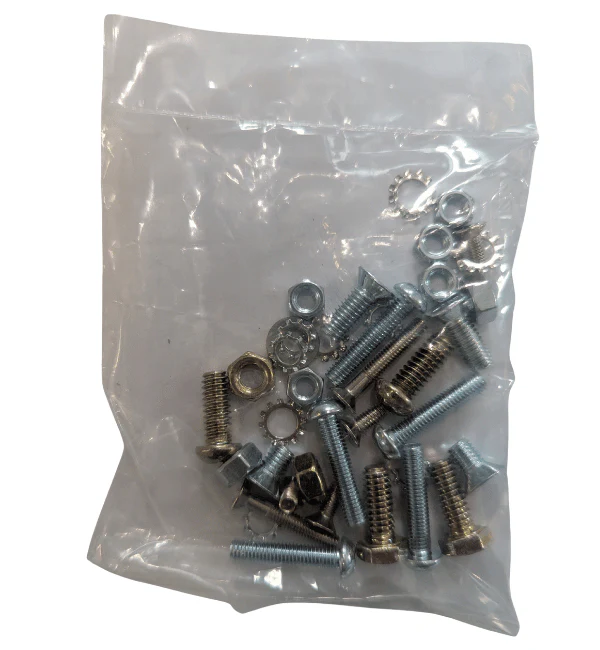

- Includes body unit and fixings – 70mm bracket size 2
- Suitable for single and double action doors
- 15mm extended spindleÂ
- 2 valves for closing and latching speed adjustment
- Pre-set cushion back-check
- No hold-open
- Suitable for door widths 751mm to 950mm
- Maximum door leaf weight 100Kg
- Standard & anti finger trap package options are available
- Dummy unit available
