Assa DC51 BCS-695962-00 Door Closer Adams Rite EN2 Non Hold Open End Load
Assa DC51 BCS-695962-00 Door Closer Adams Rite EN2 Non Hold Open End Load

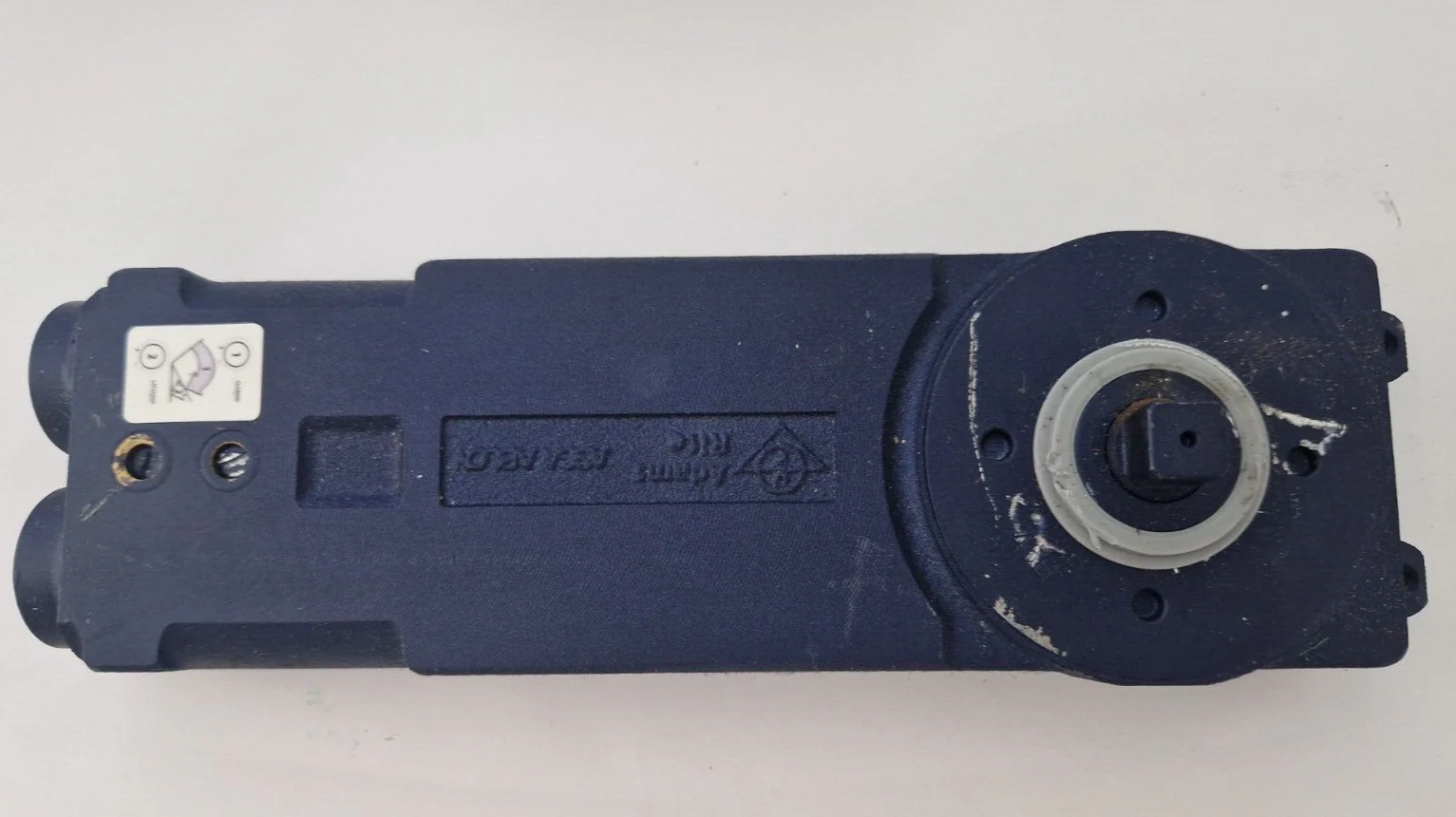

Adams Rite ARC-51N Series Overhead Concealed Door Closer

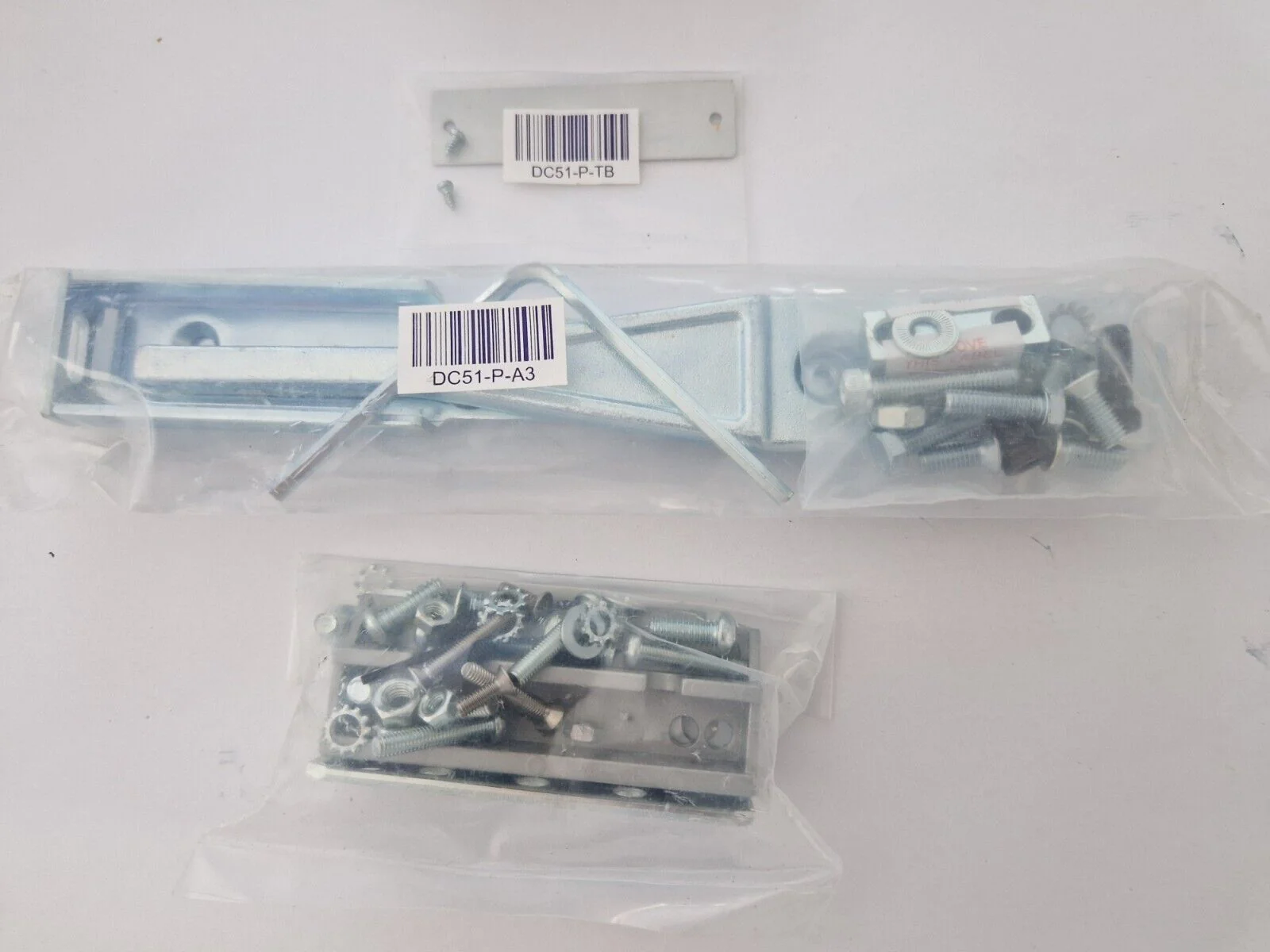

Arm rest and accessories INCLUDED -NO bottom pivot included
Designed to provide a controlled closing of single or double action aluminium doors. Features include dual closing speeds to allow flexibility in its closing action, three levels of spring tension, 90° hold-open facility and a comprehensive fixing pack including a fixing channel. Specially designed arms are available to suit anti-finger trap aluminium sections. A heavy-duty bottom pivot is supplied as standard. These are sold separately.
· Dimensions: 292mm x 90mm.
· Concealed Thickness: 37.5mm.
· Maximum Door Width:
Light: 850mm max; Medium: 950mm max; Heavy: 1100mm.
· Maximum Door Weight: Light: 40kg; Medium: 60kg; Heavy: 80kg.
· Maximum Door Height: Light/Medium/Heavy: 2500mm max.
· Closing Speed: Initial closing and latching speeds are factory preset and fully adjustable on site.
· Lubrication: Stable hydraulic fluid suitable for most climatic conditions and constant lubrication.
· Features: Built-in, positive back stop and optional 90º hold open position.
· Hold open facility not to be used on fire doors.
