Hoppe Arrone AR3500 Door Closer – Overhead Surface Mount | Traffic White Finish | Item 87101074



The Hoppe Arrone Door Closer AR3500 Item 87101074 is a premium overhead surface-mounted door closer designed for timber and steel fire-rated doors in commercial, public, and educational buildings. Engineered with adjustable power size EN 2 to 4, this unit supports backcheck, spring control, and smooth closing and latching operation for doors up to 1100 mm wide and 80 kg.

Crafted with a sleek RAL 9016 traffic white designer cover, the Hoppe Arrone Door Closer AR3500 Item 87101074 enhances both performance and aesthetic appeal. It supports versatile arm applications (Fig 1, 6, and 61), and has been tested to meet stringent BS EN 1154:1997 and BS EN 1634-1 fire safety standards. While it includes a delayed action feature, this must not be used on fire doors to remain compliant with CE and UKCA certifications.

Built for reliability and long-term durability, the Hoppe Arrone Door Closer AR3500 Item 87101074 is an ideal solution for high-traffic environments requiring a refined and functional door control solution.



Product Details

• Power Size: EN 2 to 4 (adjustable)

• Mechanism Type: Rack & pinion

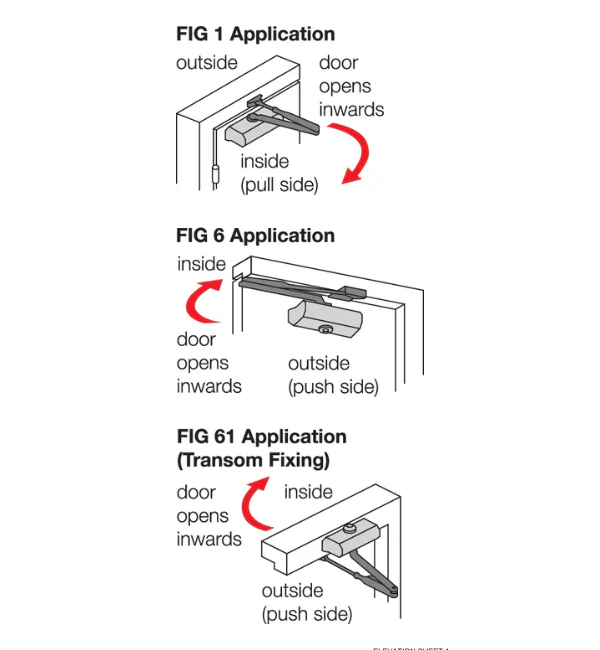

• Arm Application: Fig 1, Fig 6, Fig 61

• Arm Type: Scissor arm, detachable joint, flat form, adjustable

• Maximum Door Width: 1100 mm

• Maximum Door Weight: 80 kg

• Finish: RAL 9016 traffic white (diamond white)

• Cover Type: Designer cover

• Mechanism Functions: Backcheck, spring tension adjustment, closing & latching speed

• Opening Angle: Max 180°

• Fire Rating: 30/60/120 min timber; 240 min steel doors

• Certifications: CE (AD0009), UKCA (UK-AD7695), Certifire CF294

• Fixings: Timber door

• Dimensions: 248 x 45 x 53.5 mm; Fixing centres: 225 x 20 mm

• Note: Delayed action function not certified for use on fire doors
