Hoppe Arrone Electromagnetic Door Closer AR1998 – Silver Finish | Item 87132361



The Hoppe Arrone door closer electromagnetic AR1998 item 87132361 is a high-performance overhead door closer designed for fire door applications requiring electromagnetic hold-open or swing-free operation. With a fixed power size 4, the Hoppe Arrone door closer electromagnetic AR1998 item 87132361 supports both Fig 1 and Fig 6 fixing positions, ensuring flexibility in installation and operation.

Engineered with a rack & pinion electro-magnetic mechanism, the Hoppe Arrone door closer electromagnetic AR1998 item 87132361 ensures smooth, controlled closing, latching, and electro hold-open/swing free functionality, perfect for wooden fire-rated doors. This closer is CE and UKCA marked and certified for compliance with BS EN 1154:1997 and BS EN 1634-1 standards, tested for 30, 60, and 120-minute timber fire doors.

The slimline SE Silver Enamel finish provides a sleek look for commercial and public buildings while maintaining robust functionality. Depend on the Hoppe Arrone door closer electromagnetic AR1998 item 87132361 for secure, compliant, and stylish door control.



Product Details

• Power Size: Fixed size EN 4

• Maximum Door Width: 1100 mm (Fig 1), 950 mm (Fig 6)

• Maximum Door Weight: 80 kg (Fig 1), 60 kg (Fig 6)

• Mechanism: Rack & Pinion with Electromagnetic function

• Functions: Closing, Latching, Electro Hold-Open, Swing Free

• Certifications: CE Marked (AE0017), UKCA Marked (UK-AD7697)

• Fire Rating: Up to 120 minutes on timber fire doors

• Finish: SE Silver Enamel

• Cover: Slimline Cover

• Fixings: Timber Door

• Opening Angle: Max 105°

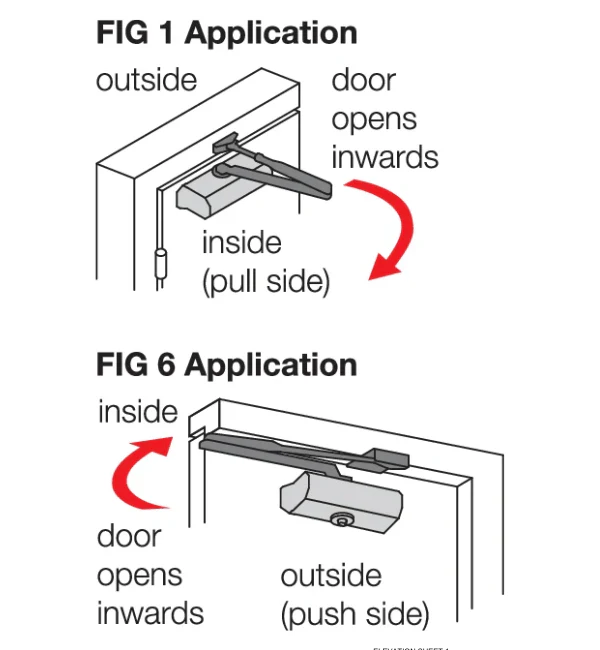

• Mounting Positions: Fig 1 & Fig 6

• Arm Type: Scissor arm with fixed joint, hold-open/swing free

• Dimensions: 280x76x49 mm
